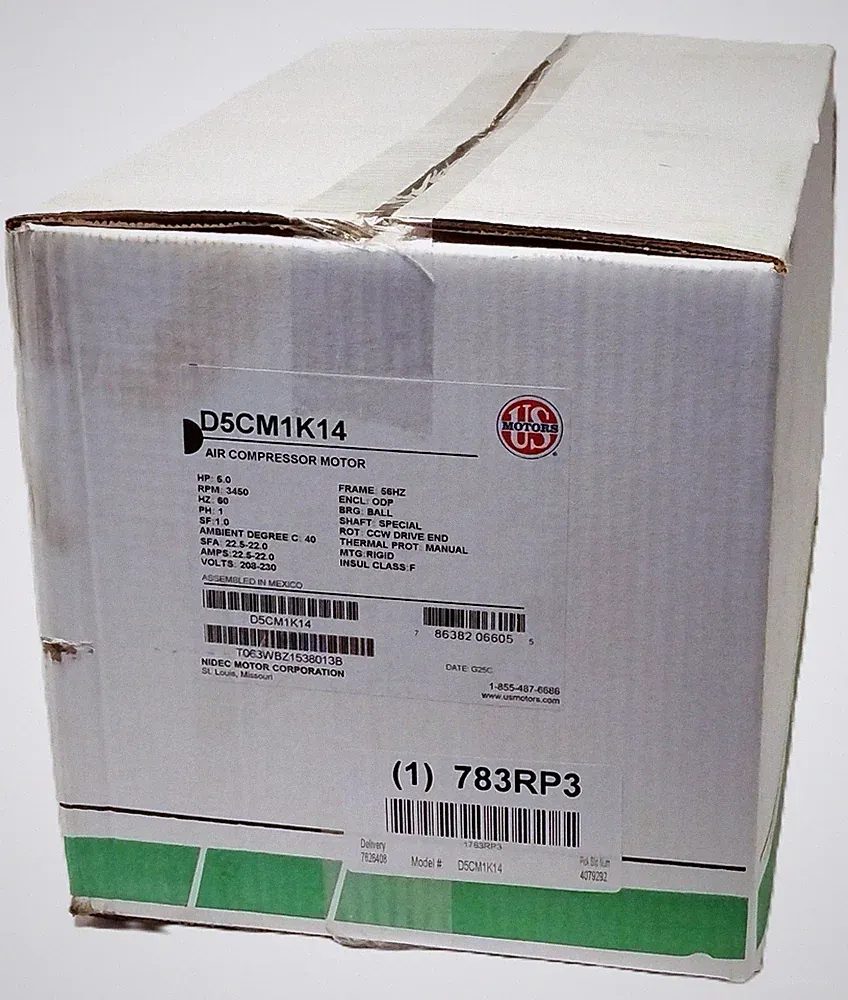

US Motors D5CM1K14 208/230 V AC 22 A 3450 RPM 5 HP Air Compressor Motor
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
The US Motors D5CM1K14 is a 5 HP air compressor motor, operating at 208/230 V AC with a full load of 22 A, delivering 3450 RPM. This single-phase motor features a 56HZ IEC frame size and a 60 Hz AC frequency rating. It has an ODP (Open Drip-Proof) enclosure, offering protection against dripping water, and utilizes a keyed 7/8 inch shaft. The motor is base-mounted, non-reversible, and has an insulation class F for heat resistance.
Our take
This US Motors 5 HP air compressor motor presents a reliable option for those needing a robust replacement. The 5 horsepower and 3450 RPM combination means it can drive substantial compressor pumps. The 208/230V input is common for larger shop equipment, and the ODP enclosure offers basic protection against dripping water, making it suitable for many indoor workshop environments. The Class F insulation indicates good heat resistance. However, it's important to note that it's a non-reversible motor, which might be a limitation depending on your specific compressor pump's rotational requirements. The 7/8 inch keyed shaft is a solid dimension, ensuring good power transfer.
Pros & Cons
Pros
- 5 HP rated load
- 3450 RPM base speed
- ODP protection against dripping water
- Class F insulation
- Sturdy 7/8 in keyed shaft
Cons
- Non-reversible rotation
- Single phase only
- 22A full load draws considerable power
Specifications
- Actual Rated Input Voltage 208/230 V
- Full Load Amps 22 A
- Rated Load (HP) 5
- IEC Frame Size 56HZ
- AC Frequency Rating 60 Hz
- Enclosure Type ODP (Open Drip-Proof)
Show all 25 specifications
- Base RPM
- 3450 RPM
- Shaft Type
- Keyed
- AC Motor Type
- Induction/Asynchronous
- Shaft Diameter
- 7/8 in
- MPN
- D5CM1K14
- Insulation Class
- F (Max 311°F)
- Warehouse Location
- ROW24-B4
- Mounting Type
- Base-Mounted
- Brand
- US Motors
- Reversible/Non-Reversible
- Non-Reversible
- Current Type
- AC
- Protection Against Liquids
- Dripping Water
- Service Factor
- 1.00
- Model
- D5CM1K14
- Nominal Rated Input Voltage
- 208/230 V
- SKU
- RS10543
- AC Phase
- Single Phase
- Country of Origin
- Mexico
- UPC
- 786382066055
